Three DIY Bottom Seal Jobs We Redid in One Week in Virginia Beach
In the last week of June our techs redid three separate do-it-yourself garage door bottom seal jobs across Virginia Beach, and all three failed for reasons that had nothing to do with effort: a T-stem that was the wrong size, a seal cut an inch short, and fresh rubber fed into a retainer that corrosion had already destroyed. Each homeowner had spent $40 to $80 at a big-box store and an afternoon on the garage floor, and each ended up with a gap a mouse could walk under by the hottest week of the year. Here is what went wrong at each house, the measurement most DIY guides skip, and what the redo cost compared to getting it right the first time.
Kempsville: the seal that kept popping out of the retainer
Want a written quote before any work? Book a free on-site estimate or text (757) 780-5858.
The first call came from a townhome off Providence Road in Kempsville, 23464. The homeowner had replaced his flattened bottom seal himself in April, and by late June it was hanging loose along a third of the door, popping free every few cycles. The seal was good rubber. The problem was the stem. His door's aluminum retainer takes a 1/4-inch T-stem, and the big-box replacement he bought carried a 5/16-inch stem, a difference of one sixteenth of an inch that the packaging never mentioned. Forced into the channel with soap and muscle, it seated just well enough to hold for a few weeks, then worked itself out as the door flexed.
This is the single most common DIY seal failure we see. There are three common T-stem sizes, 3/16, 1/4, and 5/16 inch, and the only way to know yours is to cut a sample of the old seal and measure it flat, which is the first step in our how-to on measuring for a new bottom seal. The redo was a correctly sized coastal-grade EPDM seal at $289 for his two-car door.
Salem Lakes: cut an inch short, and the mice found it first
Need this fixed today? Call (757) 777-3330 or book online. Same-day across Hampton Roads.
The second house, in Salem Lakes, had the opposite problem: the seal was the right profile, installed cleanly, and one inch too short. The homeowner measured the door face at 16 feet and cut the seal to match, but a bulb seal compresses and draws in slightly as it seats, which is why a new seal should be cut at least 6 inches long and trimmed after installation. The result was a corner gap on the hinge side of about 3/8 inch. That does not sound like much until you know a house mouse needs only a 1/4-inch gap and a Norway rat about 1/2 inch. She called us because she found droppings along the inside of the door in June.
We see this pattern every summer, and it is why pest-control companies keep telling Hampton Roads homeowners the garage seal matters. The City of Norfolk officially lists the Norway rat, house mouse, and roof rat as public health pests, and roof rats are notably more common in coastal Hampton Roads than anywhere else in Virginia. Her redo included a stainless-steel mesh anti-rodent core along the bottom seal, a $40 to $80 upgrade on top of the $289 two-car seal, the same combination we installed after the Sandbridge rodent breach last month.
Great Neck: new rubber on a retainer corrosion had already eaten
Already sure it is broken? Book the repair, we are usually there in 2 to 4 hours.

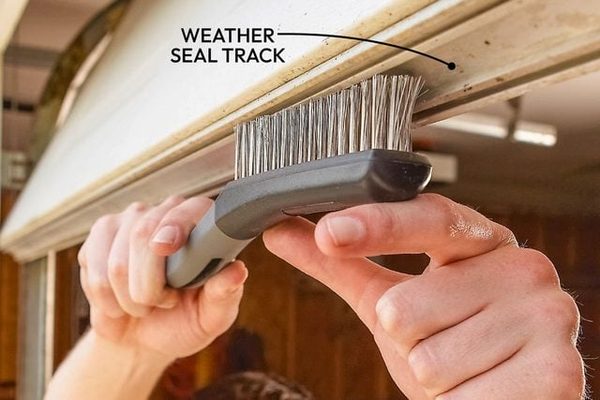

The third job, near Great Neck Road in 23454, was the most frustrating for the homeowner because his installation was flawless. Right profile, right length, clean corners. But he had fed the new seal into a fifteen-year-old aluminum retainer that salt air had pitted and split along the front lip. The channel could no longer grip the stem evenly, and the new seal sagged away from the slab within weeks. Worse, the sharp corroded edge had already started chewing into the fresh rubber.
A new heavy-wall retainer runs $85 installed alongside the seal, and skipping it when the old channel is pitted is the fastest way to waste good rubber. This is the check no DIY video shows: run a finger along the retainer lip, and if it is rough, flaking, or split anywhere, the channel goes before the seal does. Our bottom seal and doorstop service includes that inspection on every call.
Why big-box vinyl fails fast here, and what a pro job costs in 2026
Questions before you book? Ask us first, no obligation, no pressure.
All three of these failures had a shared backdrop: Virginia Beach is a brutal place to be a garage door seal. The region takes 46.9 inches of rain a year with average humidity around 70 percent, and July heat bakes a big-box vinyl seal against a sun-warmed slab day after day. On the coast, vinyl seals flatten and crack in 2 to 3 years, against 7 to 10 years inland. EPDM rubber, the material we install, resists salt air, ozone, and heat-set, which is why the redo lasts and the bargain seal does not.
The stakes are not just pests. The Department of Energy pegs the garage-to-home interface at 10 to 13 percent of total home air leakage, and at Dominion's June 2026 rate of 16.43 cents per kWh, a garage that leaks conditioned air all summer shows up on the bill, a pattern we broke down in our post on what a failed seal does to a Dominion bill.
The 2026 numbers for doing it once, correctly: a single-car coastal-grade EPDM bottom seal is $249 installed, a two-car is $289, a retainer replacement adds $85, the stainless mesh anti-rodent core adds $40 to $80, and doorstop molding for both jambs and the header runs $249 to $349 if the perimeter needs help too. A combined two-car perimeter job runs $449 to $549. Every one of those includes the stem measurement, the retainer inspection, and a seal trimmed in place, the three steps that sank these three DIY jobs.
Frequently asked questions
Why does my new garage door bottom seal keep popping out of the track?
Almost always a T-stem size mismatch. Retainer channels take a 3/16, 1/4, or 5/16-inch stem, and big-box seals often carry a different stem size than your channel without saying so on the package. A stem forced into the wrong channel seats temporarily, then works loose as the door flexes. Cut a sample of the old seal and measure the stem flat before buying.
How much extra length should I add when cutting a garage door bottom seal?
Cut the new seal at least 6 inches longer than the door width and trim it after installation. Bulb seals compress and draw in as they seat, and a seal cut to the exact door width usually ends up short at one corner, leaving a gap that a mouse can pass through at just 1/4 inch.
Do I need a new retainer or just a new seal?
Run a finger along the aluminum retainer lip. If it is pitted, flaking, rough, or split anywhere, replace it, because a corroded channel cannot grip the new stem evenly and its sharp edges will chew into fresh rubber. In coastal Virginia Beach a retainer replacement adds $85 to a seal job in 2026.
How long does a garage door bottom seal last in Virginia Beach?
A vinyl big-box seal lasts about 2 to 3 years on the coast, against 7 to 10 years inland, because salt air, roughly 70 percent average humidity, and summer slab heat flatten and crack it. A coastal-grade EPDM seal resists salt air, ozone, and heat-set and is the material worth installing here.
What does a professional bottom seal replacement cost in Hampton Roads in 2026?
A single-car coastal-grade EPDM bottom seal is $249 installed and a two-car is $289. A retainer replacement adds $85, a stainless mesh anti-rodent core adds $40 to $80, doorstop molding for both jambs and the header runs $249 to $349, and a combined two-car perimeter job runs $449 to $549.
