Published 2026-09-07 · Updated 2026-10-18 · by David Yifrach, Owner, Seaside Garage Door Experts · Virginia DPOR Contractor #2705188091
A Wayne Dalton TorqueMaster Conversion in Western Branch, Chesapeake
On August 6, 2026 we converted a 16x7 Wayne Dalton TorqueMaster door in Western Branch, Chesapeake 23321 to a standard exposed torsion spring system, priced on our published TorqueMaster-to-torsion conversion line of $420 to $640. The spring that failed was hidden inside the shaft tube, which is the whole problem with the TorqueMaster design: there is nothing to look at, so nobody gets a warning. Here is the factory label off the homeowner's own door, every part that went on it, and why we recommend converting rather than feeding the same system another hidden spring.
Key takeaways
- A 16x7 Wayne Dalton door in Western Branch, Chesapeake 23321 ran an enclosed TorqueMaster spring system. The factory tube label reads SPR,TM3,W/DRIV,0.650X.164X57.14,CLS,RH,W/LINER, photographed on site.
- Converted to a standard exposed torsion system with a new 16 ft torsion tube, a conversion hardware kit and a matched pair of 225 series springs.
- Seaside Garage Door Experts' published TorqueMaster-to-torsion conversion price: $420 to $640, quoted in writing before the work starts. A 16-foot door that needs a full-length shaft and Wayne Dalton adapter hardware sits at the upper end and can run higher.
- TorqueMaster rated cycle life runs roughly 7,000 to 10,000 cycles against 20,000 or more for a modern torsion spring, and the springs are invisible until they break.
- The homeowner left a verified five-star Google review: "David arrived on time, inspected my garage door, explained in detail what needed to be done & professionally tuned it up while answering all my questions respectfully. Most highly recommended." Owner David Yifrach ran the job personally, VA DPOR Contractor #2705188091, a 5.0 rating across 88 Google reviews plus 169 Thumbtack reviews.
What a TorqueMaster door looks like before anything is taken apart
Questions before you book? Ask us first, no obligation, no pressure.
Stand inside almost any Hampton Roads garage and look at the wall above the door. On a standard torsion setup you will see one or two springs wound around a steel shaft, sitting out in the open on a center bearing plate. You can see rust. You can see a gap where a coil has snapped. A technician can read the wear off that shaft in about four seconds.

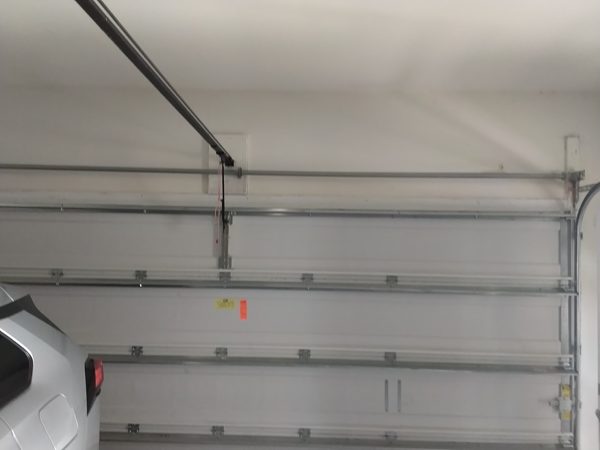

This door had none of that. The photo above is exactly how we found it: a 16 ft sectional door, closed, with a plain tube spanning the header and nothing visible wound around it. That is a Wayne Dalton TorqueMaster. The springs live inside the tube, behind a liner, with the winding mechanism at the ends. It is a tidy look and it was a genuinely clever idea. It also means the one component most likely to fail on the whole door is the one component nobody can inspect, including us.
The factory label, and what it told us
Want a written quote before any work? Book a free on-site estimate or call (757) 777-3330.

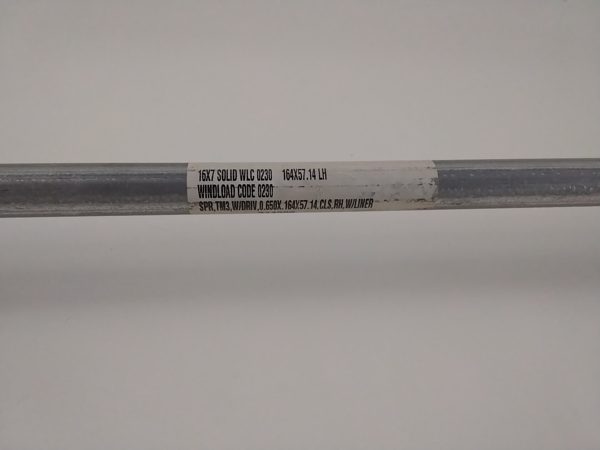

We photograph the tube label on every TorqueMaster call, because it settles the argument about what is actually up there. This one reads, line for line:
- 16X7 SOLID WLC 0230 and 164X57.14 LH
- WINDLOAD CODE 0230
- SPR,TM3,W/DRIV,0.650X.164X57.14,CLS,RH,W/LINER
Three things came off that label immediately. The door is a 16 by 7, so the conversion needed a full 16 ft torsion tube rather than a short one, which is a real cost difference. The spring is a TM3 series TorqueMaster with a liner and a drive end, so this is the enclosed system and not a torsion door somebody re-skinned. And the tube carries a windload code, which is standard on doors specified for coastal Virginia and worth knowing before anybody starts swapping hardware around on it.
David Yifrach, on why he shoots the label first: "A TorqueMaster does not tell you anything while it is working, so the label is the only honest piece of paper on the door. It gives me the width, the spring family and the wind rating before I quote a dollar. I would rather spend two minutes with a flashlight than guess and then come back with the wrong shaft. On a 16 footer the shaft alone is the difference between a job that finishes today and a job that finishes Thursday."
What we replaced, line by line
Already sure this is the fix you need? Book the conversion, it is a single-visit job when the hardware is on the truck.
The enclosed TorqueMaster assembly came out. In its place went a standard exposed torsion system: a new 16 ft steel torsion tube carrying a matched pair of 225 series springs, one Black and one Red, color-coded so the wind direction is right on each side, plus the bracket and fastener kit that adapts a Wayne Dalton door to standard torsion hardware. The parts that went on the door:
- TorqueMaster assembly removed and the door converted to standard torsion, 16 ft door
- Spring system conversion hardware kit (brackets, fasteners, fittings)
- Torsion spring, 225 series, Black
- Torsion spring, 225 series, Red
- Torsion tube and shaft, 16 ft
Our published conversion line is $420 to $640, and this door sat at the upper end of it for two reasons you can see on the parts list: a 16 ft door needs the full-length shaft, and a Wayne Dalton conversion needs its own adapter hardware, neither of which applies to a door that already runs standard torsion. Prices can vary with what we find on a given door, and we always quote before we start. If you want the underlying maths on spring pricing generally, our garage door spring replacement cost guide breaks down what a pair costs on a conventional door, and our TorqueMaster conversion service page carries the current ranges.
Why we convert instead of feeding it another hidden spring
Need a straight answer on your own Wayne Dalton door? Call (757) 777-3330 or book online. Same-day and next-day slots across Chesapeake.
The honest case for a one-time TorqueMaster spring replacement is that it costs about half a conversion today. The case against it is that you are buying the same blind spot back. Rated cycle life on a TorqueMaster runs roughly 7,000 to 10,000 cycles, against 20,000 or more for a modern torsion spring, and a household that opens the door four times a day is spending about 1,460 cycles a year. A conversion typically outlasts three more TorqueMaster failures, which is why we tell people it pays for itself inside 4 to 6 years, and after that every spring on the door is a standard part any competent company in Hampton Roads can source the same day.
There is a second reason that matters more in Chesapeake than most people expect. Western Branch, Grassfield and Deep Creek are full of late-1990s and 2000s builder doors, and the ones that came with enclosed spring systems are all arriving at the end of their cycle life at roughly the same time. We have logged this failure pattern across the city all year, and a full hardware change like this one is the largest repair ticket we see in Chesapeake short of a new door, well above a tune-up or a single-part fix.
The rest of the visit, and what the homeowner said
Two things about this job we want to be precise about, because the invoice and the review describe slightly different parts of the same afternoon. The job record covers the conversion hardware and labor. The homeowner's review and our own published reply to it both record that the same visit also included a maintenance and tune-up pass on the door and programming a new remote. That is the full picture of the visit, and we are laying out which source says what rather than blending them.
The homeowner left this on Google two days later, five stars, in full and untrimmed:
"David arrived on time, inspected my garage door, explained in detail what needed to be done & professionally tuned it up while answering all my questions respectfully. Most highly recommended."
Western Branch, Chesapeake homeowner, verified Google review, August 8, 2026
If your own door is showing the symptoms rather than the paperwork, our guide to broken garage door spring symptoms covers what to check before you call, and spring repair covers conventional torsion and extension work. For the full technical background on this system, including why Wayne Dalton moved away from it, read TorqueMaster failure and conversion in Hampton Roads. For everything we do in this city, see garage door repair in Chesapeake.
Two more conversions from the same year, on different door widths and different budgets: a TorqueMaster conversion in Hampton, and a Ford's Colony conversion in Williamsburg from June. And for a different Chesapeake failure on the same side of the city, we documented an off-track door with shattered rollers in Western Branch.
Frequently asked questions
How much does a Wayne Dalton TorqueMaster conversion cost in Chesapeake?
Seaside Garage Door Experts' published TorqueMaster-to-torsion conversion price is $420 to $640, including the new torsion shaft, bearing plates, cable drums, cables and springs. This 16x7 door in Western Branch sat at the upper end of that line because it needed a full 16 ft torsion tube and a separate conversion hardware kit; prices can vary by door and we quote before we start.
Why do TorqueMaster springs fail without warning?
The springs sit inside the shaft tube instead of out in the open, so there is nothing to inspect. You cannot see a gap, rust or a stretched coil the way you can on a standard torsion spring. Rated cycle life is roughly 7,000 to 10,000 cycles against 20,000 or more for a modern torsion spring, so the failure arrives as a surprise on an ordinary morning.
Can you just replace a TorqueMaster spring instead of converting the door?
Sometimes, and we will tell you when that is the cheaper honest answer. The reason we usually recommend the conversion on an older door is arithmetic. A conversion costs about double a one-time TorqueMaster spring replacement, but it typically outlasts three more TorqueMaster failures, so it pays back inside 4 to 6 years and every future spring becomes a standard part.
How long does a TorqueMaster conversion take?
A single conversion is typically 2.5 to 3.5 hours on site. It is a one-visit job when the shaft, drums, bearing plates and springs are on the truck, which is why we carry conversion hardware rather than ordering it after the diagnosis.
Do you cover Western Branch and the rest of Chesapeake?
Yes. Western Branch, Greenbrier, Great Bridge, Grassfield, Deep Creek, Indian River and Hickory are all inside our regular Chesapeake service area, with no separate trip charge and a free on-site estimate. Every price comes from our published price list at /pricing.
How do I know if my TorqueMaster spring is broken?
If the door suddenly feels very heavy, the opener lifts it a few inches and stops, or the door hangs crooked, the TorqueMaster spring inside the tube has most likely broken. You will not see a gap the way you would on an exposed torsion spring, because the spring is hidden behind the liner, so a loud bang from the header followed by a door that will not lift is the usual sign.
