Garage Door Parts Diagram: Every Component Explained
A residential garage door is nine connected systems: the panels, the tracks, the torsion spring and shaft, the lift cables, the rollers, the hinges, the bottom seal, and the opener with its motor, rail, and trolley. The three original diagrams below label every part in each system. Click any part's link to see what it does, the failure pattern we see most in Hampton Roads, and the published 2026 repair range, sourced from our own service pages rather than a national average.
Key takeaways
- Three systems fail the most in Hampton Roads: the torsion spring (loud bang, door won't lift), the rollers and cables (grinding, fraying, off-track doors), and the opener's receiver or logic board (remote or keypad stops working).
- A torsion spring pair runs $240 to $420 installed. A cable pair runs $160 to $280. A full roller set runs $120 to $180.
- Hinges are the cheapest part on the door, $24 to $80 for a full set of 6 in parts, or $140 to $220 for a professional service call if a hinge has bent a panel edge.
- The bottom seal is the part most homeowners can identify and least homeowners replace on time. Coastal-rated EPDM seal replacement runs $175 to $325 for a single-car door.
- Every labeled part below links to its own repair page with the full published price range and what a technician actually checks.
Full system diagram
The complete door, front cutaway view. Panels 1 through 4, both tracks, the torsion spring and shaft, the lift cables, the rollers, the hinges, the bottom seal, the opener motor and rail, and the wall control console.
| Part | What it does | How it fails | 2026 repair range |
|---|---|---|---|
| 1. Door panels | The visible sections that make up the door face, usually 3 to 5 per residential door. | Dented by a car bumper, cracked from a bent hinge, or corroded at the bottom edge from standing water. | Bottom panel $300–$600 |
| 2. Tracks | Vertical and horizontal metal channels that guide the rollers as the door travels. | Bent by a car backing into the door, or knocked out of alignment when a cable snaps. | Off-track reset $160–$260 |
| 3. Torsion spring & shaft | Counterbalances the door's full weight so the opener only has to move it, not lift it. | Metal fatigue after 7 to 12 years or 10,000 to 20,000 cycles, ends in a sudden snap. | Spring pair $240–$420 |

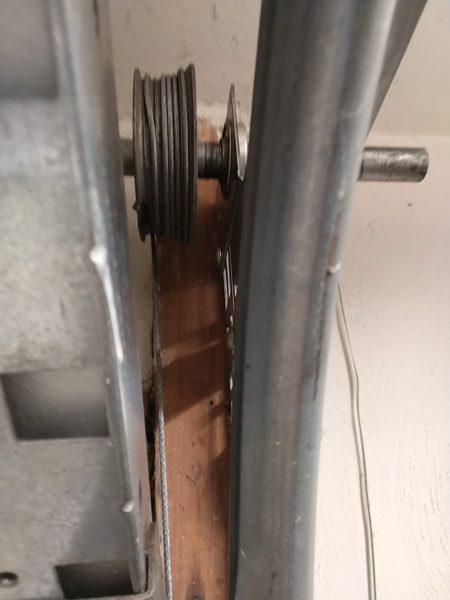

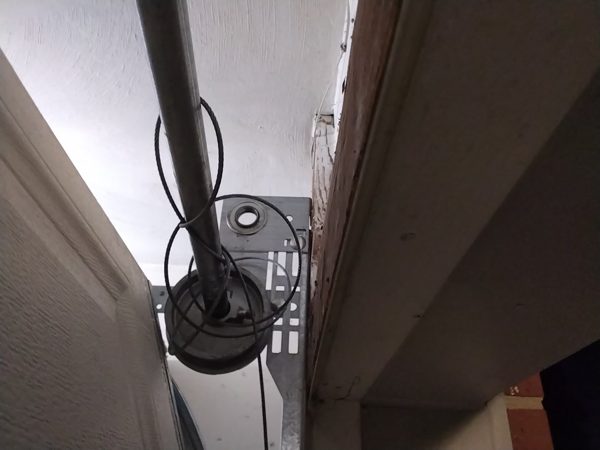

| 4. Lift cables | Steel cables that connect the bottom corners of the door to the spring's cable drums. | Fraying strands from drum wear, or a snap when a spring fails and dumps full tension onto the cable. | Cable pair $160–$280 |
| 5. Rollers | Wheels bolted to each panel's hinge that ride inside the track as the door opens and closes. | Steel rollers wear and grind after 5 to 8 years; a cracked or missing roller lets the panel jump the track. | Roller set $120–$180 |
| 6. Hinges | Connect adjoining panels and hold the roller stems, letting the door flex around the curved track. | Loosen and elongate their bolt holes over years of cycling, which shows up as a sagging or crooked panel line. | Service call $140–$220 |
| 7. Bottom seal | A rubber weatherstrip in a track along the bottom edge that blocks water, wind, and pests. | Cracks, flattens, or pulls loose after UV and salt-air exposure, usually inside 3 to 5 years on this coast. | Single-car door $175–$325 |
| 8–9. Opener, rail & console | Motor head, rail, trolley, and wall console that drive the door and read the remote, keypad, and safety sensors. | Worn drive gear, a failed logic board, or a receiver that stops recognizing remotes and keypads. | Opener repair $140–$549 |
Torsion spring system, close up
The hardware directly above the door opening: the torsion spring wound on a steel shaft, the center support bracket, the winding cone, the cable drum, the lift cable, and the end bearing plate that anchors it to the wall. This is the single highest-tension assembly on the door and the reason spring work is not a DIY repair.
See the full spring repair page for grades, cycle life, and why we default to 20,000-cycle springs, or the spring replacement cost guide for a DIY-vs-pro breakdown.
Opener assembly, close up
The motor head, rail, trolley, drive belt or chain, safety reversing sensors, wall control console, and emergency release cord. This is the part of the system most homeowners interact with daily and the part most likely to fail electronically rather than mechanically.
Full troubleshooting for this system: opener repair, programming a remote or keypad, or our opener troubleshooting guide if the motor runs but the door won't move.
"Most homeowners can point at their garage door and name maybe two parts: the spring and the opener." Everything else, the drum, the cone, the trolley, the hinges, they've never had a reason to learn until something breaks. I built these diagrams the way I'd explain it standing next to your door: here's the part, here's what actually goes wrong with it in Hampton Roads, and here's what it costs to fix, not a national average.
Frequently asked questions
What are the main parts of a garage door?
Panels, vertical and horizontal tracks, a torsion spring and shaft, lift cables, rollers, hinges, a bottom seal, and an opener with a motor, rail, and wall console. The diagrams above label all of them, and every part links to what it costs to repair.
What part breaks and stops a garage door from opening?
Most often the torsion spring, the thick coiled spring above the door that counterbalances its weight. A snapped spring shows up as a loud bang followed by a door that will not lift, or an opener that strains and stalls. Torsion spring pair replacement runs $240 to $420 installed.
What is the part called that a garage door hangs on inside the frame?
The vertical and horizontal tracks, the metal channels on each side of the opening. Rollers attached to the panel edges ride inside the tracks as the door moves. A bent track or worn rollers is the most common cause of a door binding or coming off track.
How much does it cost to replace a garage door part?
It depends on the part: a roller set runs $120 to $180, a cable pair runs $160 to $280, hinges run $140 to $220 for a professional service call, a bottom seal runs $175 to $325, and a torsion spring pair runs $240 to $420, all installed. Full ranges are listed next to each labeled part above.
What does the garage door opener trolley do?
The trolley rides along the opener's rail and connects to the door through a straight or bent arm. When the motor turns the drive belt or chain, the trolley slides along the rail and pulls the door open or lets it down. A trolley disconnected from its release cord is how a door is opened by hand during a power outage.
